Ficha Técnica

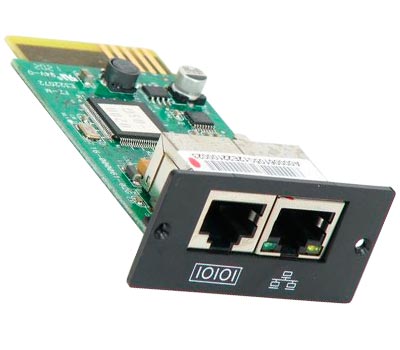

LA-SNMP REMOTE MANAGEMENT CARD
The SNMP communications card allows you to control and manage multiple UPS through the SNMP network management protocol using an RJ45 connection.
Supports optional Environmental Monitoring Detector (EMD) for temperature, humidity and smoke control
Built-in web server to control and monitor multiple UPSs - Remote management via internet access
- Easy installation
Integrates with ViewPower management software and SNMP Web manager

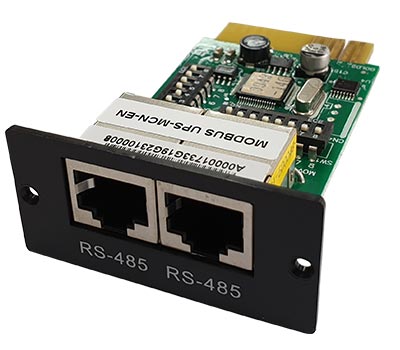

LA-MODBUS REMOTE MANAGEMENT CARD
The Modbus card provides compatible UPS with control and monitoring via the RS-485 communications port using the MODBUS RTU protocol, providing MODBUS functions including read hold registers and write register.
- Support for off-network UPS monitoring
- Integrated with ViewPower software
- Built-in switch for RS-485 configuration
- Real-time control and monitoring of multiple UPSs
Also incorporates surge protection and integrates with ViewPower management software.

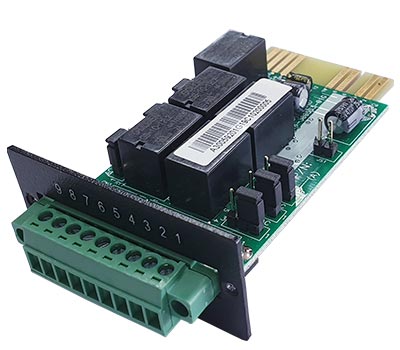

LA-AS400 REMOTE MANAGEMENT CARD
Supplies signals through the dry connector contacts or the DB9 connector (depending on version) for the remote monitoring and management of the UPS.
- Multiple UPS monitoring
- Remote security protection
- Audible alarm notifications
- Simple one-click firmware upgrade
To meet different application requirements, the AS400 card is capable of selecting signal status (Open or Closed)

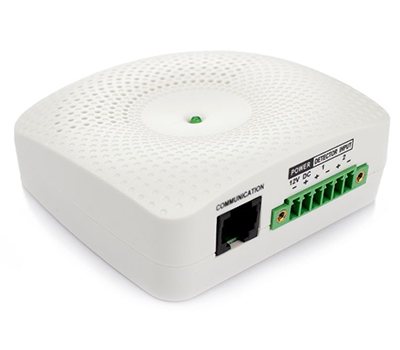

ENVIRONMENTAL CONTROL DEVICE LA-EMD
LA-EMD is a connectivity device to remotely control temperature and humidity through the SNMP card, in order to protect your equipment.
- Environmental control device
- Remote temperature and humidity monitoring
- 4 contact closure signals
- Compatible with alarms, security systems.
Detects temperature levels between 0 and 100ºC and relative humidity between 10 and 90% RH in the installation.
Remote UPS Management
Management Software
Easy Installation
