LA-ON-DC

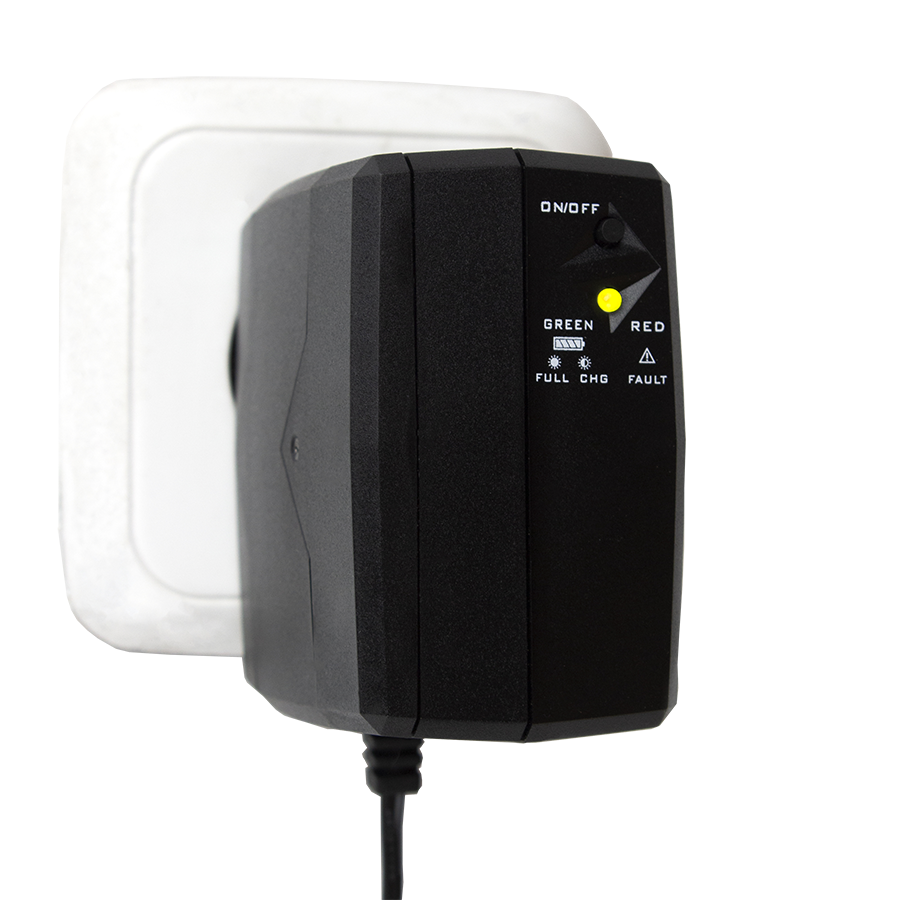

DC UPS LA-ON-DC designed to provide continuous 12VDC power to low-consumption electronic equipment, integrating lithium-ion battery, microprocessor control, automatic startup, multicolor LED indicator and protection against overload, short circuit and over-discharge to ensure greater service continuity in applications such as routers and communication devices.
- Compact size.
- Easy installation.
- Lithium-ion battery.
✓DC UPS direct current
✓Built-in lithium-ion battery
✓Reliability optimized by microprocessor control
✓Automatic startup when plugged in
✓Manual shutdown switch
✓Simple Plug & Play installation
✓Multicolor LED status indicator
✓Overload, short circuit and over-discharge protection
Description
Uninterruptible power for basic systems, keeping equipment operating at all times even during a power outage.
DC UPS LA-ON-DC
| Parameter | LA-ON-DC |
|---|---|
| INPUT | |
| Input range | 90 VAC ~ 264 VAC |
| Frequency | 50 or 60 Hz |
| Surge protection | 1.5KV (Optional K.21 enhanced, 6KV) |
| OUTPUT | |
| Voltage | 12VDC ± 5% |
| Max. power | 25W (2.1A) |
| BATTERY | |
| Type | Lithium-ion Battery |
| Voltage | 3.7VDC |
| Capacity | 2600mAh |
| Typical charging time | 3 hours to 90% capacity |
| PROTECTION | |
| Battery | Deep discharge, overcharge and short circuit protection |
| Input / Output | Fuse protection against short circuits and overloads |
| INDICATORS | |
| Battery full | Green light |
| Battery charging | Constant green LED flashing |
| Battery discharging | Rapid green LED flashing |
| Fault | Red light |
| CONNECTIONS | |
| Input plug | Integrated in housing (EU/UK/NEMA) |
| Output cable | 1m cable (DC male jack, OD 4mm, ID 1.7mm or OD 5.5mm, ID 2.1mm) |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 68 mm x 42 mm x 74 mm |
| Net weight (g) | 280 g |
| RUNTIME TABLE | |
| Router 12V 1.0A | 150 min. |
| Router 12V 1.5A | 120 min. |
| Router 12V 2.0A | 90 min. |
| ENVIRONMENTAL CONDITIONS | |
| Relative humidity | 20-90 % RH @ 0-40°C (non-condensing) |
INPUT
Input range
90 VAC ~ 264 VAC
Frequency
50 or 60 Hz
Surge protection
1.5KV (Optional K.21 enhanced, 6KV)
OUTPUT
Voltage
12VDC ± 5%
Max. power
25W (2.1A)
BATTERY
Type
Lithium-ion Battery
Voltage
3.7VDC
Capacity
2600mAh
Typical charging time
3 hours to 90% capacity
PROTECTION
Battery
Deep discharge, overcharge and short circuit protection
Input / Output
Fuse protection against short circuits and overloads
INDICATORS
Battery full
Green light
Battery charging
Constant green LED flashing
Battery discharging
Rapid green LED flashing
Fault
Red light
CONNECTIONS
Input plug
Integrated in housing (EU/UK/NEMA)
Output cable
1m cable (DC male jack, OD 4mm, ID 1.7mm or OD 5.5mm, ID 2.1mm)
PHYSICAL CHARACTERISTICS
Dimensions
68 mm x 42 mm x 74 mm
Net weight (g)
280 g
RUNTIME TABLE
Router 12V 1.0A
150 min.
Router 12V 1.5A
120 min.
Router 12V 2.0A
90 min.
ENVIRONMENTAL CONDITIONS
Relative humidity
20-90 % RH @ 0-40°C (non-condensing)
