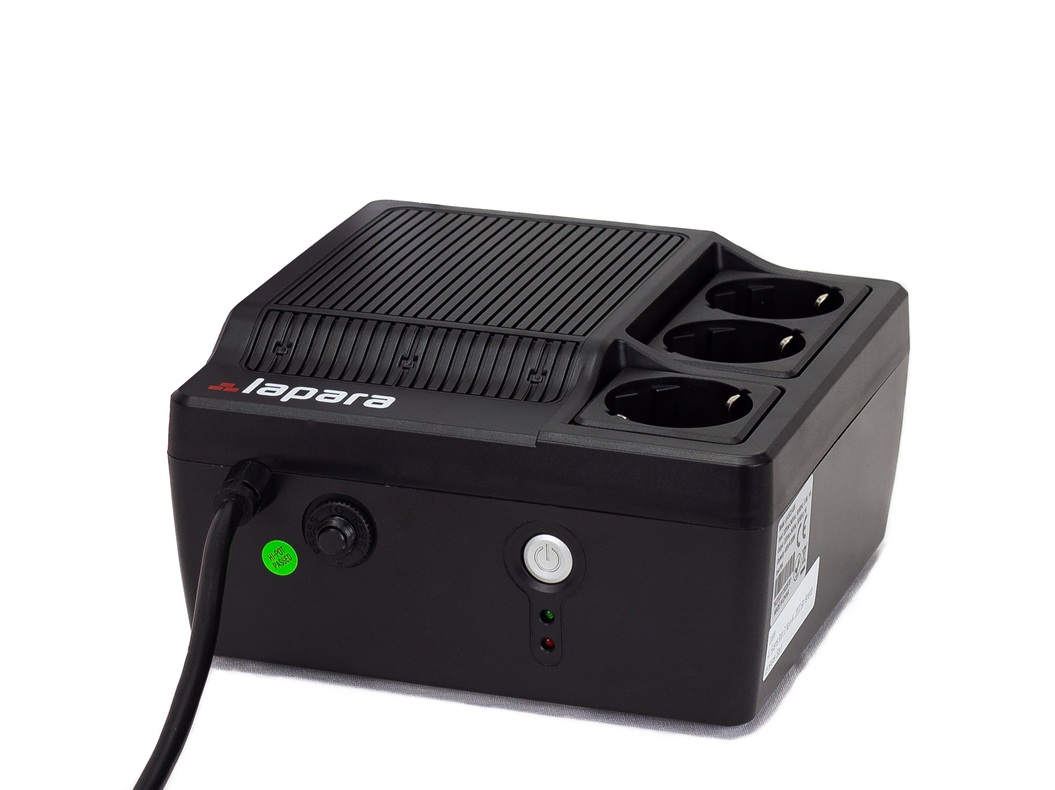

LA-SCD Off-Line UPS

LA-SCD Off-Line UPS for home or small office use, with built-in microprocessor that increases reliability. It provides basic protection at an affordable price in stable urban environments. Its compact size and easy installation with Schuko outlets make it ideal for home use.

Auto restart when power returns
Microprocessor control
Elegant design ready for wall mounting

✓Offline UPS

✓Modified sine wave

✓Power factor 0.5

✓Compact size and easy to use

✓Microprocessor control ensures reliability

✓Cold start function

✓Auto restart when power returns

✓Easy Plug & Play installation

✓3 Schuko outlets

✓Basic protection against electrical incidents

SCD Series Offline UPS

Model	LA-SCD-400	LA-SCD-600
Capacity	400 VA / 200 W	600 VA / 300 W
INPUT
Voltage	220/230/240 VAC
Voltage range	180-270 VAC
Frequency range	50 Hz
OUTPUT
AC voltage regulation (Battery mode)	±10%
Frequency range (Battery mode)	50 Hz ±1 Hz
Transfer time	Typical 2-6 ms, 10 ms max.
Waveform (Battery mode)	Modified sine wave
BATTERY
Battery type and quantity	12 V / 4.5 Ah x 1	12 V / 5 Ah x 1
Typical recharge time	8 hours to 90% capacity
INDICATORS
AC mode	Green LED
Battery mode	Green LED flashes every 10 sec.
Low battery	Green LED flashes every second and red LED on
Fault	Red LED
Overheating	Red LED flashes every 0.5 sec.
PROTECTION
Full protection	Overload, discharge and overload protection
ALARM
Battery mode	Beeping every 10 seconds
Low battery	Beeping every second
Fault	Continuous beeping
INTERFACE
Output connections	3x Schuko
PHYSICAL DATA
Dimensions, D x W x H (mm)	166 x 161 x 86.7
Net weight (kg)	2.25	2.60
OPERATING ENVIRONMENT
Humidity	0-90% relative humidity (non-condensing)
Operating temperature	0-40°C
