19″ RACK PDU STRIP WITH MONITORING LA-PDU-MT-R-IEC

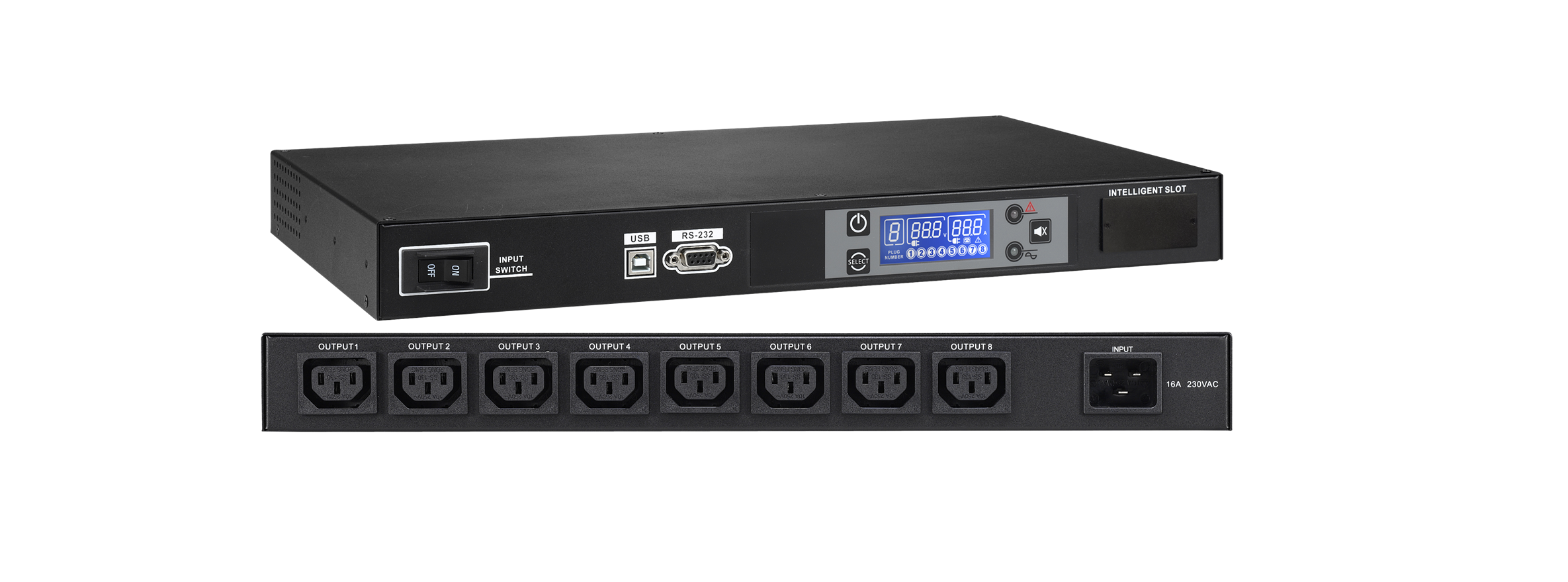

19″ rack PDU strip with monitoring 8 x IEC C13 designed to distribute AC power from a single source to eight IEC C13 outlets, offering advanced load monitoring, individual current measurement, local or remote on/off control, and alarm functions for rack installations requiring a higher level of electrical supervision and management.
✓19" rack PDU strip with local and remote monitoring
✓8 x 10A IEC320 C13 outlets
✓Input via 16A 250V IEC C20 connector
✓Real-time individual current measurement per outlet
✓Total active power measurement
✓Scheduled on/off control for all outlets
✓Sequential power-on delay to avoid high peak currents
✓RS-232 / USB communication and optional SNMP card
✓User-configurable alarm thresholds for alerts and overloads
✓Event alerts via email, audible alarm and display error code
✓1U format for horizontal or vertical rack installation
19" rack PDU strip with monitoring 8 x IEC C13 Lapara
| Parameter | LA-PDU-MT-R-IEC |
|---|---|
| Product | 19" rack PDU strip with monitoring |
| Reference | LA-PDU-MT-R-IEC |
| Format | 19" 1U rack, horizontal or vertical installation |
| INPUT | |
| Input connector | 1 x IEC C20 (16A) 250V |
| Nominal input voltage | 220 / 230 / 240V |
| Frequency | 50 / 60 Hz |
| Power cable | 1.8 meters long |
| OUTPUT | |
| Number of outlets | 8 |
| Outlet type | 8 x IEC320 C13 (10A) |
| Output voltage | 186V ~ 300V |
| Maximum power | 2500W |
| Amperage | 10A |
| MONITORING AND CONTROL | |
| Monitoring | Local and remote, independent per outlet |
| Measurement | Real-time individual current and total active power |
| Outlet control | Local and remote on / off |
| Programming | Scheduled on / off for all outlets |
| Sequential delay | Sequential power-on configuration to avoid high peak current |
| Digital ammeter | Yes |
| Manageable | Yes |
| COMMUNICATION | |
| Ports | RS-232 / USB (not simultaneous) |
| SNMP | Optional, not included |
| ALARMS AND EVENTS | |
| Alarm thresholds | User-defined for alerts and overloads |
| Event alerts | Email, audible alarm and display error code |
| PHYSICAL DATA | |
| Dimensions | 250 x 430 x 44 mm |
| Net weight | 3.5 kg |
| Switch | Yes |
| WORKING ENVIRONMENT | |
| Temperature | 0 ~ 50 °C |
| Humidity | 0% ~ 90% (non-condensing) |
GENERAL
Product
19" rack PDU strip with monitoring
Reference
LA-PDU-MT-R-IEC
Format
19" 1U rack, horizontal or vertical installation
INPUT
Input connector
1 x IEC C20 (16A) 250V
Nominal input voltage
220 / 230 / 240V
Frequency
50 / 60 Hz
Power cable
1.8 meters long
OUTPUT
Number of outlets
8
Outlet type
8 x IEC320 C13 (10A)
Output voltage
186V ~ 300V
Maximum power
2500W
Amperage
10A
MONITORING AND CONTROL
Monitoring
Local and remote, independent per outlet
Measurement
Real-time individual current and total active power
Outlet control
Local and remote on / off
Programming
Scheduled on / off for all outlets
Sequential delay
Sequential power-on to avoid high peak current
Digital ammeter
Yes
Manageable
Yes
COMMUNICATION
Ports
RS-232 / USB (not simultaneous)
SNMP
Optional, not included
ALARMS AND EVENTS
Alarm thresholds
User-defined for alerts and overloads
Event alerts
Email, audible alarm and display error code
PHYSICAL DATA
Dimensions
250 x 430 x 44 mm
Net weight
3.5 kg
Switch
Yes
WORKING ENVIRONMENT
Temperature
0 ~ 50 °C
Humidity
0% ~ 90% (non-condensing)
