MAINTENANCE BYPASS FOR UPS LA-PDU-SM-R-SCHK
Maintenance bypass for UPS designed for rack installations with UPS up to 3000 VA, allowing manual load transfer to mains without supply interruption, thus facilitating maintenance or UPS replacement tasks. This model incorporates Schuko-type connections instead of IEC connectors, maintaining the Master/Slave energy-saving function within a compact and easy-to-integrate 19″ rack format.
✓19" rack maintenance bypass for large UPS and regulators
✓Allows manual load transfer to mains without interrupting supply
✓Provides continuous power to connected equipment during UPS maintenance
✓Master/Slave design for energy saving
✓Automatic disconnection of Slave outlets when Master outlet consumption is below 20W (±5W)
✓Easy operation via rotary switch
✓Plug & Play connectivity for both input and output
✓Suitable for all UPS up to 3000 VA
✓4 Schuko outlets in compact rack format

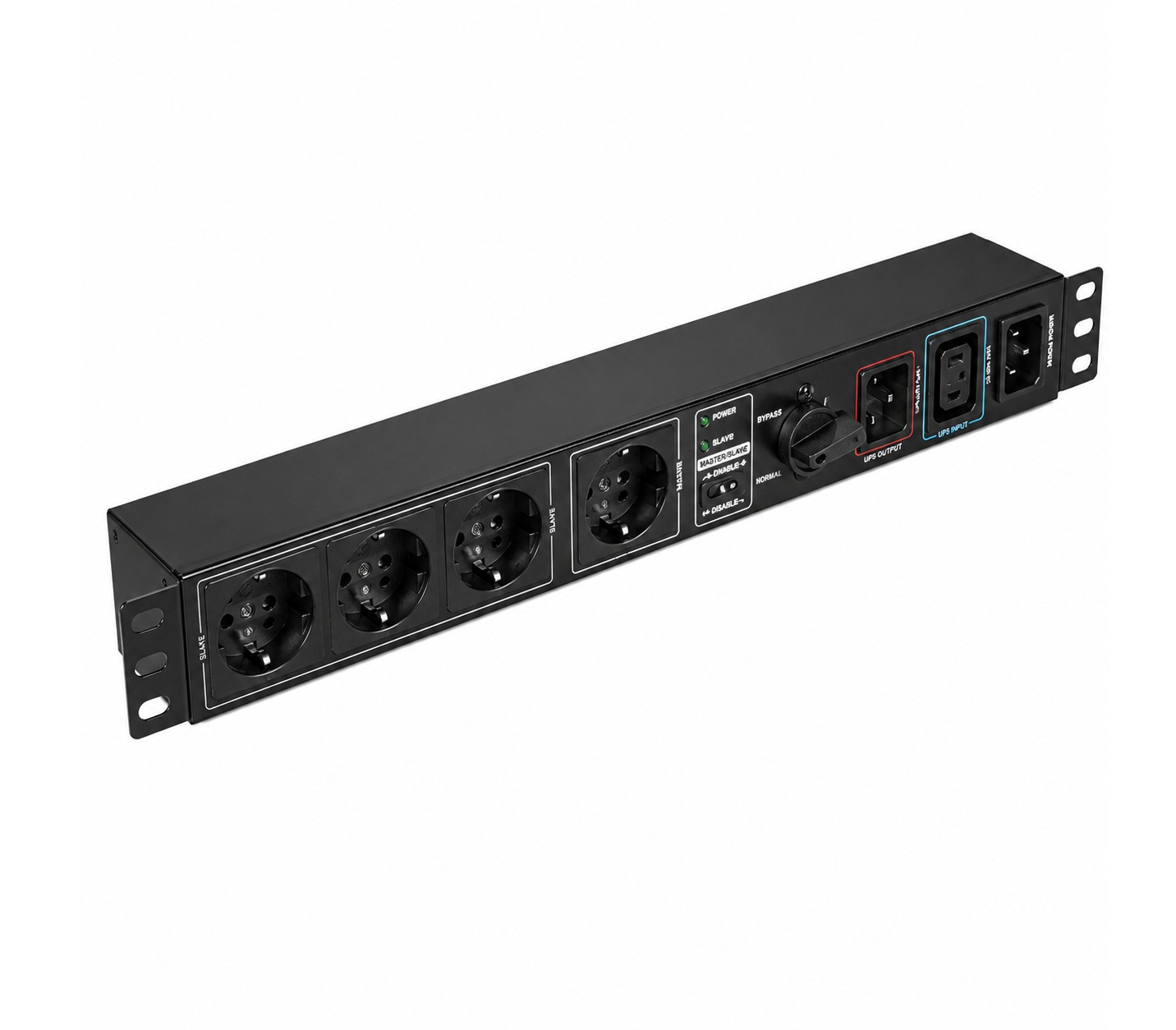

19" rack maintenance bypass LA-PDU-SM-R-SCHK
| Parameter | LA-PDU-SM-R-SCHK |
|---|---|
| Product | Maintenance Bypass Switch |
| Model | LA-PDU-SM-R-SCHK |
| Model code | 19” MBS |
| Application | External distribution unit for UPS |
| ELECTRICAL CHARACTERISTICS | |
| Rated current | 16A |
| Rated voltage | 208 / 220 / 230 / 240 VAC |
| Energy saving | Yes. If Master outlet consumption is below 20W (±5W), Slave outlets are disconnected |
| LED INDICATORS | |
| Power LED | Green light |
| Master/Slave Function LED | Green light |
| CONNECTIONS | |
| Main Power | 1 x IEC C20 (16A) |
| Input from UPS | 1 x IEC C20 (16A) |
| Output to UPS | 1 x IEC C19 (16A) |
| Master Output | 1 x SCHUKO (16A) |
| Slave Output | 3 x SCHUKO (16A) |
| PHYSICAL DATA | |
| Dimensions | 438 x 80 x 50 mm |
| Color | Black |
| Weight | 1.5 kg |
| Format | 19" Rack |
| WORKING ENVIRONMENT | |
| Temperature | 0°C – 40°C |
| Humidity | 20% - 90% RH (non-condensing) |
| CONTENT AND LOGISTICS | |
| Package contents | Maintenance bypass LA-PDU-SM-R-SCHK, input cable |
GENERAL
Product
Maintenance Bypass Switch
Model
LA-PDU-SM-R-SCHK
Model code
19” MBS
Application
External distribution unit for UPS
ELECTRICAL CHARACTERISTICS
Rated current
16A
Rated voltage
208 / 220 / 230 / 240 VAC
Energy saving
Yes. If Master outlet consumption is below 20W (±5W), Slave outlets are disconnected
LED INDICATORS
Power LED
Green light
Master/Slave Function LED
Green light
CONNECTIONS
Main Power
1 x IEC C20 (16A)
Input from UPS
1 x IEC C20 (16A)
Output to UPS
1 x IEC C19 (16A)
Master Output
1 x SCHUKO (16A)
Slave Output
3 x SCHUKO (16A)
PHYSICAL DATA
Dimensions
438 x 80 x 50 mm
Color
Black
Weight
1.5 kg
Format
19" Rack
WORKING ENVIRONMENT
Temperature
0°C – 40°C
Humidity
20% - 90% RH (non-condensing)
CONTENT AND LOGISTICS
Package contents
Maintenance bypass LA-PDU-SM-R-SCHK, input cable
