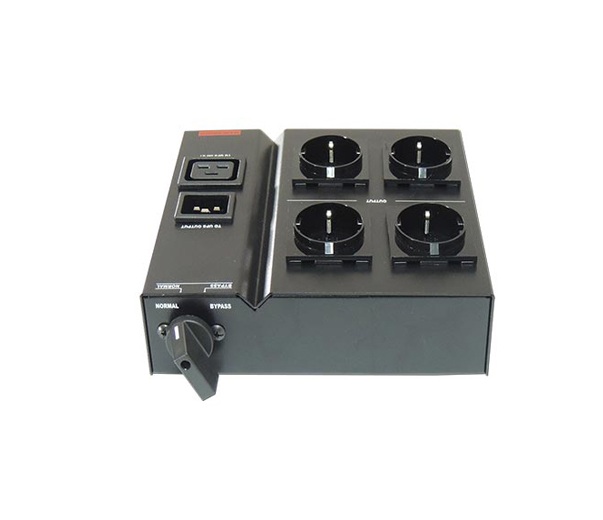

MAINTENANCE BYPASS FOR UPS LA-PDU-SM-T-SCHK
Maintenance bypass switch for UPS with Schuko outlets designed for installations with UPS up to 3000 VA, allowing manual load transfer to mains without cutting power to connected equipment. Its Master/Slave design adds an energy-saving function and makes it a practical solution for safe maintenance and electrical distribution in a compact desktop / floor format.
✓Maintenance bypass with Schuko outlets
✓Allows manual load transfer to mains without interrupting supply
✓Provides continuous power to connected equipment during UPS maintenance or replacement
✓Master/Slave design for energy saving
✓Automatic disconnection of Slave outlets when Master outlet consumption is below 20W (±5W)
✓Easy operation via rotary switch
✓Plug & Play connectivity for input and output
✓Suitable for UPS up to 3000 VA
✓Compact desktop / floor format
19" rack maintenance bypass LA-PDU-SM-T-SCHK
| Parameter | LA-PDU-SM-T-SCHK |
|---|---|
| Product | Maintenance Bypass Switch |
| Model | LA-PDU-SM-T-SCHK |
| Application | External distribution unit for UPS |
| ELECTRICAL CHARACTERISTICS | |
| Rated current | 16A |
| Rated voltage | 208 / 220 / 230 / 240 VAC |
| Energy saving | Yes. If Master outlet consumption is below 20W (±5W), Slave outlets are disconnected |
| LED INDICATORS | |
| Power LED | Green light |
| Master/Slave Function LED | Green light |
| CONNECTIONS | |
| Main Power | 1 x IEC C20 (16A) |
| Input from UPS | 1 x IEC C20 (16A) |
| Output to UPS | 1 x IEC C19 (16A) |
| Master Output | 1 x SCHUKO (16A) |
| Slave Output | 3 x SCHUKO (16A) |
| PHYSICAL DATA | |
| Dimensions | 200 x 180 x 50 mm |
| Color | Black |
| Weight | 1.5 kg |
| Format | Compact desktop |
| WORKING ENVIRONMENT | |
| Temperature | 0°C – 40°C |
| Humidity | 20% - 90% RH (non-condensing) |
| CONTENT AND LOGISTICS | |
| Package content | Maintenance bypass LA-PDU-SM-T-SCHK, input cable |
GENERAL
Product
Maintenance Bypass Switch
Model
LA-PDU-SM-T-SCHK
Model code
19” MBS
Application
External distribution unit for UPS
ELECTRICAL CHARACTERISTICS
Rated current
16A
Rated voltage
208 / 220 / 230 / 240 VAC
Energy saving
Yes. If Master outlet consumption is below 20W (±5W), Slave outlets are disconnected
LED INDICATORS
Power LED
Green light
Master/Slave Function LED
Green light
CONNECTIONS
Main Power
1 x IEC C20 (16A)
Input from UPS
1 x IEC C20 (16A)
Output to UPS
1 x IEC C19 (16A)
Master Output
1 x SCHUKO (16A)
Slave Output
3 x SCHUKO (16A)
PHYSICAL DATA
Dimensions
200 x 180 x 50 mm
Color
Black
Weight
1.5 kg
Format
Compact desktop
WORKING ENVIRONMENT
Temperature
0°C – 40°C
Humidity
20% - 90% RH (non-condensing)
CONTENT AND LOGISTICS
Package content
Maintenance bypass LA-PDU-SM-T-SCHK, input cable
