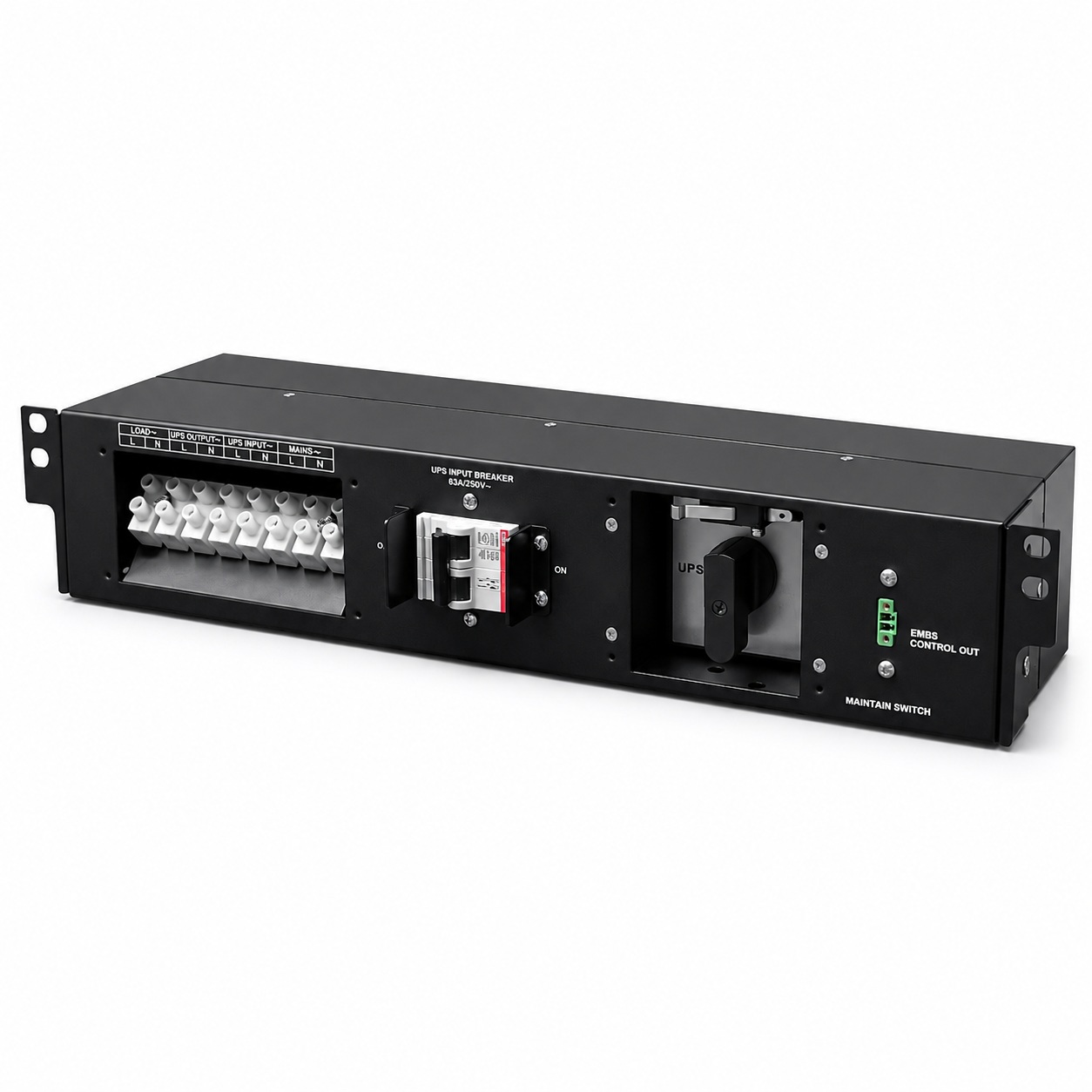

MAINTENANCE BYPASS SWITCH FOR UPS LA-SM-BYPASS-R-6/10K
19″ rack maintenance bypass switch for 6 kVA and 10 kVA Lapara UPSs, designed to manually transfer the load to the mains via a two-position rotary selector, allowing scheduled maintenance, battery replacement or UPS replacement without interrupting power to connected equipment.
✓Maintenance bypass switch for 6 kVA to 10 kVA UPSs
✓19" rack format in 2U
✓Allows manual transfer of the connected equipment to the mains via a two-position rotary selector
✓Makes scheduled maintenance, battery replacement or UPS replacement easier without interrupting power
✓10 kVA rated power
✓63 A maximum input
✓N-L terminal block power connectors
✓Recommended wiring: 10 AWG for 6 kVA UPSs and 8 AWG for 10 kVA UPSs
✓Suitable for UPSs up to 10 kVA
19" rack maintenance bypass switch for 6 kVA and 10 kVA Lapara UPSs
| Parameter | LA-SM-R-6/10K |
|---|---|
| Product | Maintenance bypass switch for 6–10 kVA UPS |
| Reference | LA-SM-R-6/10K |
| Extended name | LA-SM-BYPASS-R-6/10K |
| Application | Power distribution alongside a UPS or AVR system |
| ELECTRICAL SPECIFICATIONS | |
| Rated power | 10 kVA |
| Maximum input | 63 A |
| UPS compatibility | UPSs up to 10 kVA |
| Transfer type | Manual via bypass switch |
| Selector | Two-position rotary |
| Power connectors | N-L terminal block |
| Recommended wiring | 10 AWG for 6 kVA UPSs and 8 AWG for 10 kVA UPSs |
| FUNCTION AND USE | |
| Main function | Manually transfer the load to the mains without interrupting the supply |
| Intended use | Scheduled maintenance, battery replacement or UPS replacement |
| Operation | Easy operation via rotary selector |
| PHYSICAL DATA | |
| Format | 19" rack 2U |
| Dimensions | 438 x 158 x 86 mm |
| Weight | 3 kg |
| INCLUDED | |
| Contents | Installation guide |
GENERAL
Product
Maintenance bypass switch for 6–10 kVA UPS
Reference
LA-SM-R-6/10K
Extended name
LA-SM-BYPASS-R-6/10K
Application
Power distribution alongside a UPS or AVR system
ELECTRICAL SPECIFICATIONS
Rated power
10 kVA
Maximum input
63 A
UPS compatibility
UPSs up to 10 kVA
Transfer type
Manual via bypass switch
Selector
Two-position rotary
Power connectors
N-L terminal block
Recommended wiring
10 AWG for 6 kVA UPSs and 8 AWG for 10 kVA UPSs
FUNCTION AND USE
Main function
Manually transfer the load to the mains without interrupting the supply
Intended use
Scheduled maintenance, battery replacement or UPS replacement
Operation
Easy operation via rotary selector
PHYSICAL DATA
Format
19" rack 2U
Dimensions
438 x 158 x 86 mm
Weight
3 kg
INCLUDED
Contents
Installation guide
